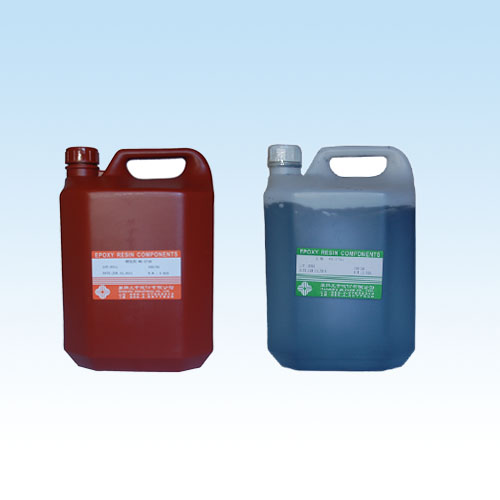

WINKING  EPOXY  RESIN  COMPONENTS

                  WK-901B / WK-585H

PROPERTIES OF UNCURED MATERIAL

1. Appearance：               901B         White dense  liquid
                                          585H         Clear  liquid
2.  Density：                    901B         1.6
                                          585H         1.05
3.  Mix Ratio：        901A/585H : 100/25
4.  Life（mixture）                           25℃ ： 10-20min
5.  Gel Time：                                   25℃ ： 2 Hours.
6.  Curing Condition：                      25℃ ： 4 Hours.

PROPERTIES OF CURED………………… 7 DAYS CURED @25℃

H. D. T.                                           ASTM   D   648      ℃                 110
Flexural Strength                              ASTM   D   790      Kgf/㎜2            8.0
Tensile Strength                               ASTM D 638           Kgf/㎜2           4.2
Adhesive Strength                                 Kgf/㎝            80
Hardness                                         ASTM   D  2240       Shore D           88
Volume Resistance                          ASTM   D   257       ohm-cm            2.7X1016
Dielectric Constant                          ASTM   D   150       @25℃, 1 KHz      4.0
Dielectric Strength                               2 ㎜.                KV/㎜             22.0
Moisture absorption                        ASTM   D   570       @100℃/4 Hours.   <0.1
Flame Resistance                               UL Subject           94 1/4”          V-0
